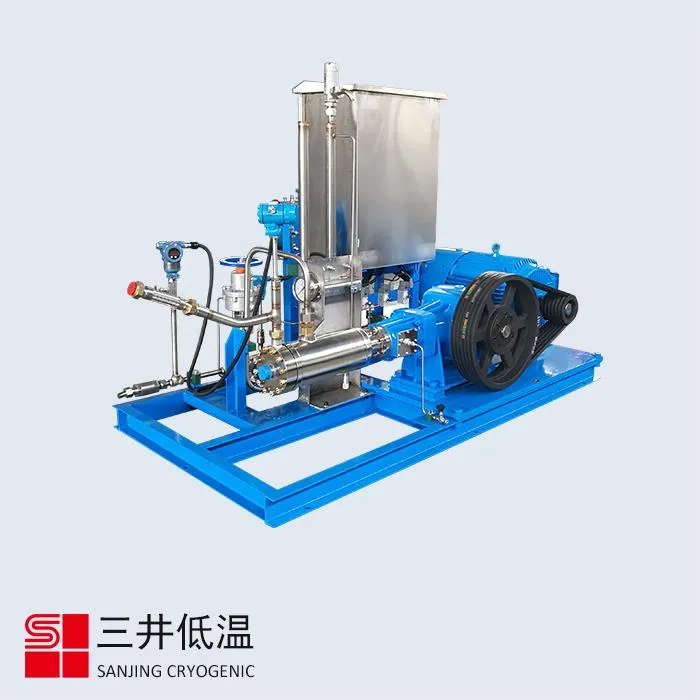

P41-Single IG 200-1000L High Pressure Cylinder Filling Pump

Group: P41-single

Model: SBP200-450/250 (Liquid Fluid 200-450/H,  Max Pressure 25MPa)

Model: SBP300-600/350 (Liquid Fluid 300-600/H,  Max Pressure 35MPa)

Model: SBP400-800/350 (Liquid Fluid 400-800L/H,  Max Pressure 35MPa)

Model: SBP500-1000/350 (Liquid Fluid 400-800L/H,  Max Pressure 35MPa)



Application:

The P41 series high pressure filling pump is developed from P450 and P200 series. Thanks to the widely deployment in market of these two types, Sanjing has accumulated enough practical experience and performing data to push the pump working pressure to another level of 350bar in max. These models can be used for cylinder filling of IG, and testing pipeline’s pressure. What’s more, it can be integrated onto a LN2 pump truck give a mobile service of gas supplement to the pipeline networks.

.

Benefits and feature:

1. Vacuum jacketed cold end minimizes heat leak and lowers liquid vaporization.

2. Stainless steel made cold end ensures the steady performance at cryogenic temperature.

3. Specially de-oiled process allows the units a safety when pumping oxygen.

4. Interlocking provides protections avoiding over pressure and low temperature.

5. Long lifespan of the seals and steady performing

6. 24-hour persistent using available.



Working medium:

LOX, LIN, and LAr.
